New Tank

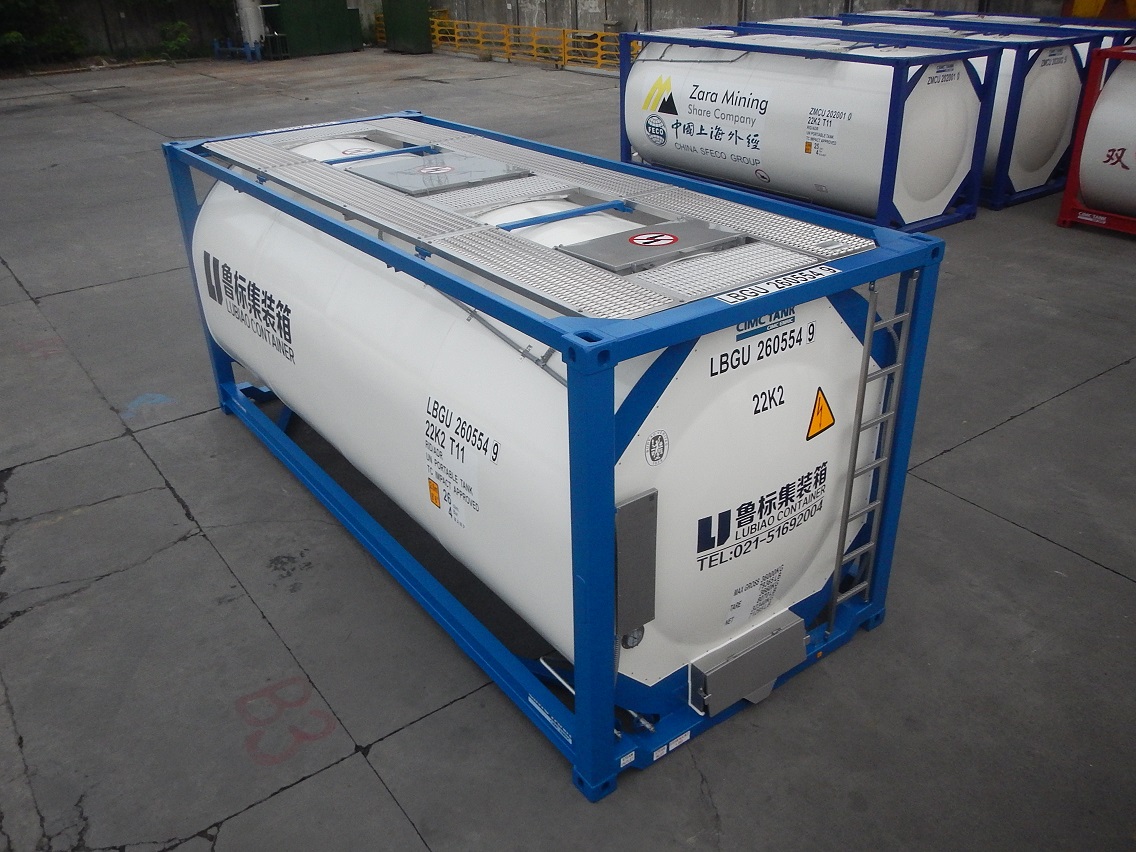

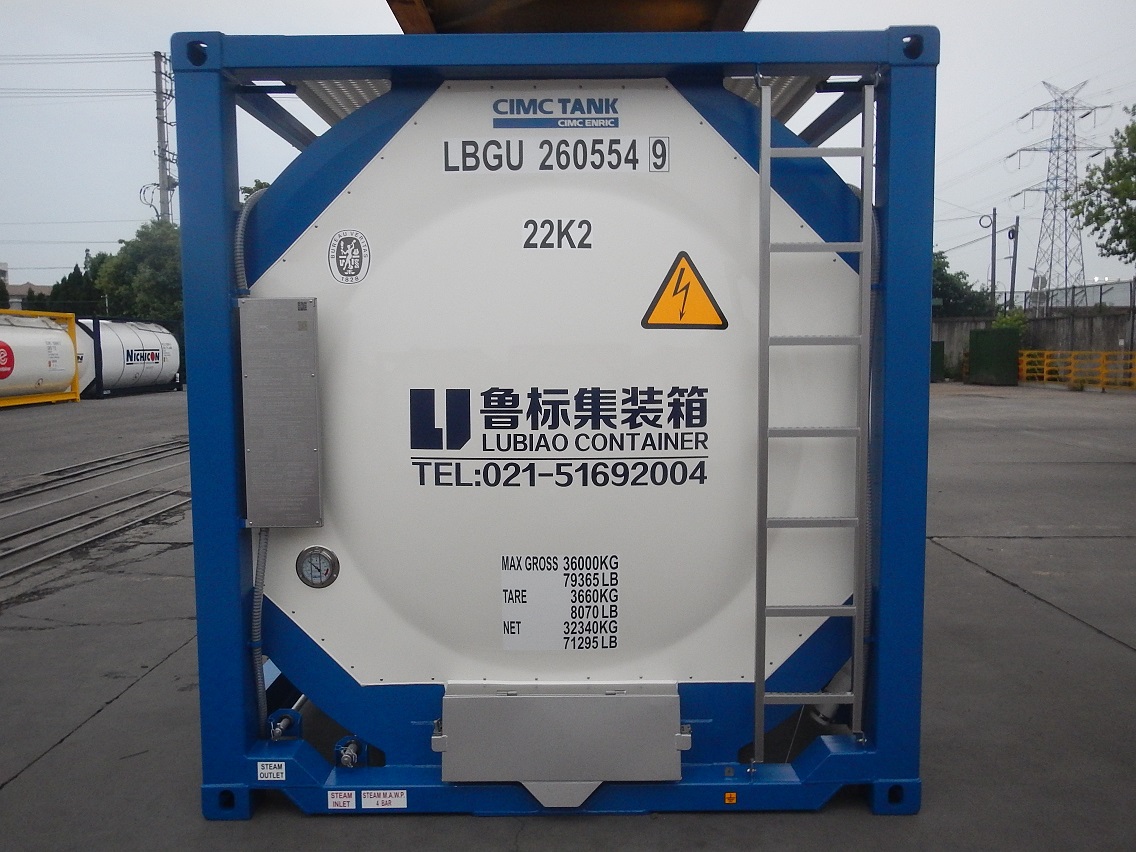

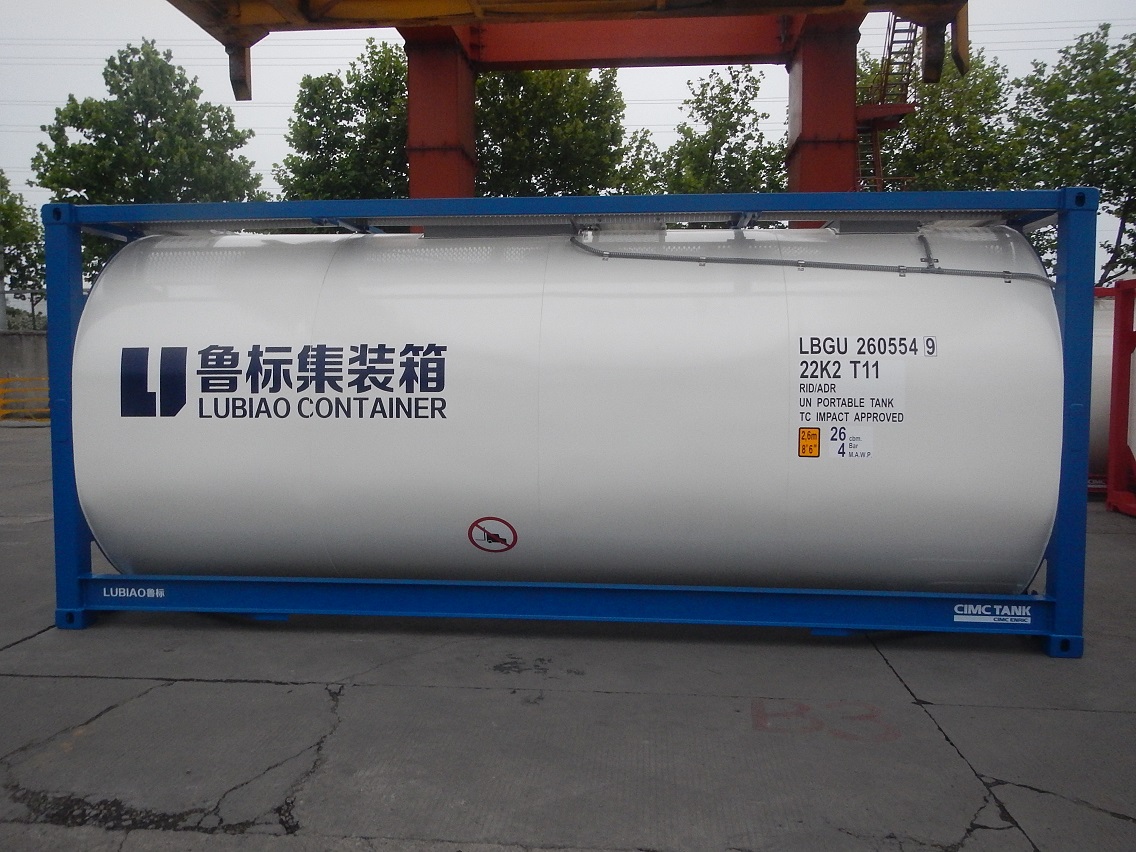

26KL TANK CONTAINER
| Tank Type: | 20feet Full Frame, UN Portable T11 Tank Container |
| Frame Size: | L6058mm，W2438mm，H2591mm |
| Capacity: | 26,000 litres (-1 +0%) |
| Tare Mass: | 3,600 kg (+/-3%) |
| Max Gross Mass: | 36,000 kg |
| Max Payload: | 32,400 kg |
Max Allowable Working Pressure: | 4 bar |
| Test Pressure: | 6 bar |
| External Pressure: | 0.41 bar |
| Design Temp.: | -40°C to 130°C |
| Material: | SANS 50028-71.4402 =316L，Carbon《=0.03% |
| Design Code: | ASME VIII Div 1 |
| Type Approvals: | IMDG, CFR49, RID/ ADR), US/DoT, UIC, TIR, CSC, TC |
| Classification Society: | BV, LR |
If you have any inquiry please Call 021-51860678, we will contact with you very soon.
